Описание

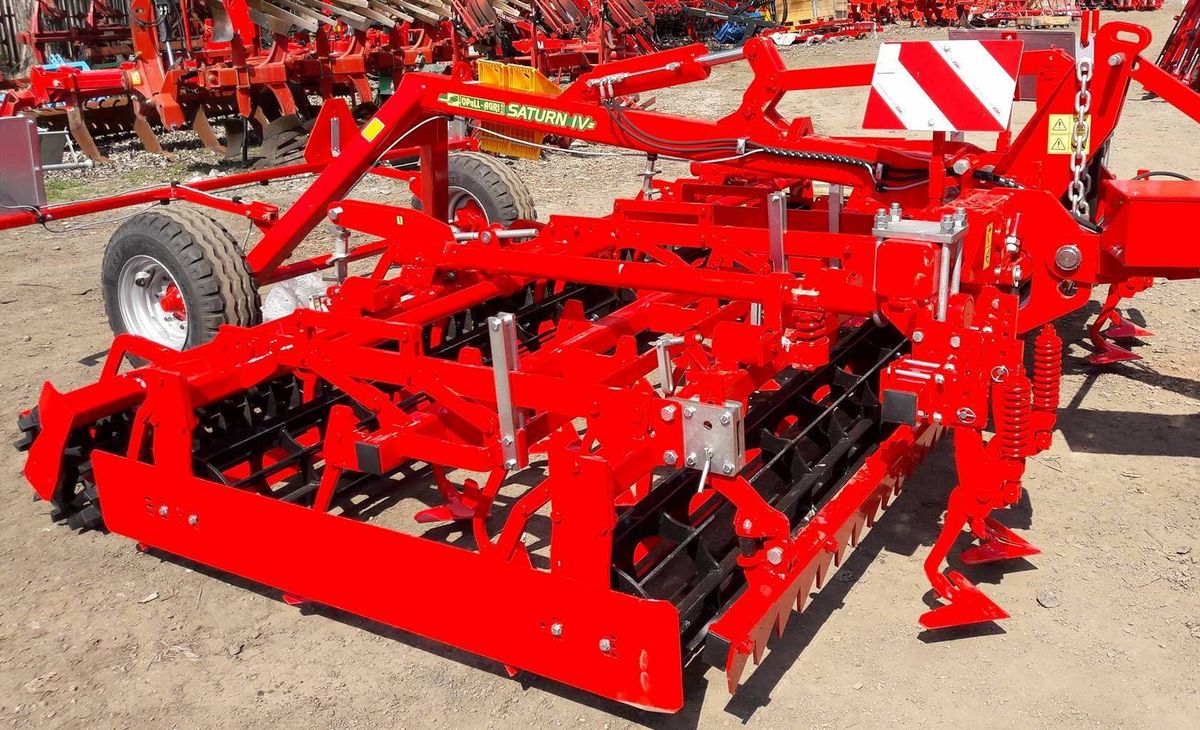

Combined cultivators NEPTUN-SATURN IV are machines with unique technology of the arrangement of working parts to create a precise seedbed. The ingenious concept is suitable for any type of soil thanks to a wide range of equipment and accessories. The NEPTUN-SATURN IV is suitable, thanks to working widths of 8 or 10 m, for tractors from 230 horsepower.

Universal tool carrier (chassis) NEPTUN is possible to connect with other machines, for example with discs harrows PEGAS II or tine cultivator MERKUR IV. According to the individual variants of the cultivating parts, a working depth of 2-12 cm can be achieved.


Basic equipment

  • Working widths of 8 • 10 m
  • Tractor track cultivators
  • 2 rows of bar back-up rollers with a diameter of 330 mm
  • 2 rows of levelling bars after crumbling rollers
  • Working section according to the selected variant: P, Pe, S, PR
  • Double-row maintenance-free ball bearings
  • Adjusting the working depth of the working section with a crank
  • Traffic sign
  • Hitch D51(39), K80

Optional extras

  • Front drag bar
  • Hydraulic release of the levelling bar
  • Hydraulic working depth adjustment of working sections



Technical specifications
Unit
NEPTUN-SATURN IV 8 TH
NEPTUN-SATURN IV 10 TH
Working width
m810
Loosening depth
cm2-12
2-12
Number of duckfoot shares
pcs32+6
40+6
Number of chisel blades
pcs96+6
120+6
Working speed
km/h7-12
7-12
Transport width
m33
Size of tyre / wheel

560/45-22.5
560/45-22.5
Weight*
kg6960
8530
Tractor output
hp210-260
250-320
