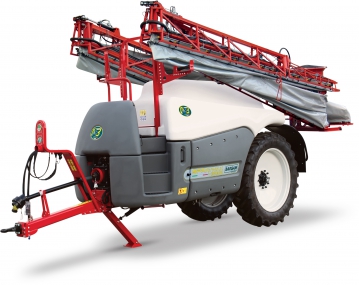

SPRAYMAX (4500-5500-6500) BDL AIR PLUS G-VAR
Арт.№: IRI722

За въпроси и повече информация
0700 10 445

Описание


FRAME
● SINGLE HIGH RESISTANCE “I” BEAM
● GROUND CLEARANCE 700mm (WITH STANDARD WHEELS)
● SINGLE ARM PARALLELOGRAM LIFTING STROKE 1800 MM (ASSEMBLED ON SELFLUBRICATING BUSHINGS) SHOCK ABSORBER WITH NITROGEN ACCUMULATOR
● HYDRAULIC PARKING FOOT ACTIVATED BY MANUAL LEVER WITH DOUBLE-EFFECT PUMP AND INDEPENDENT TANK
● FIXED DRAWBAR WITH EYE D 40mm ADJUSTABLE HEIGHT
● REAR TRAILER HOOK
● FRONT CABLE HOLDER WITH MANUAL GAUGE D 100mm INTEGRATED
● nr 2 CHAINS FOR THE CABLES
WATER TANK
● HIGH RESISTANCE POLIETHILENE TANKS
● CENTRALIZED AND INSPECTABLE ENTRY OF THE TUBES IN THE TANK IN THE UPPER SIDE OF THE TANK
● INTERNAL AGITATION WITH 10 AGITATORS (4500/5500/6500), 8 AGITATORS (2500/3500) POSITIONED ON 2 DIFFERENT HEIGHTS
● 2 BREAKWATER BULKHEAD (4500/5500/6500), 1 BREAKWATER BULKHEAD (2500/3500), IN STAINLESS STEEL AND WITH AGITATION BY BYPASS RETURN OF THE PUMP
● ELECTRONIC LEVEL INDICATOR (VISIBLE FROM THE SYNCRO ON THE SIDE OF THE MACHINE AND FROM THE MONITOR IN THE CAB)
● INTERNAL WASHING WITH 3 POWERFUL ROTARY NOZZLES
● 600 LT CLEAN WATER TANK
● 2 X HANDWASHING TANKS (RIGHT AND LEFT SIDE)
● 2 OPENING LADDERS (WITH STORAGE COMPARTMENTS) AND INTEGRATED IN THE SIDE COVERS, TO ACCESS THE PLATFORM FROM BOTH SIDES OF THE MACHINE
● LARGE DIMENSION CONTAINER HOLDER
● 2 SIDE COVERS WITH TOTAL COVERAGE AND VERTICAL OPENING
WATER SYSTEM
● PUMP "AR 380”
● ERGONOMIC AND COMPACT CENTRALIZED WATER FUNCTION CONTROL BOARD, WITH ELECTRIC VALVES THAT CAN BE ACTUATED EITHER FROM CABIN AND ALSO FROM MACHINE’S SIDE
● 3” SUCTION FILTER WITH 50 MESH CARTRIDGE
● SELF-CLEANING “T6” (1”1/2) LINE FILTER WITH 80 MESH INTERNAL CARTRIDGE
● SINGLE LINE FILTER "T6" (1 "1/2), WITH DOUBLE CARTRIDGE (80/100 MESH)
● QUICK COUPLING FOR FILLING HOSE FROM EXTERNAL SOURCE (2 ”CAM LOCK)
● WATER SYSTEM COMPONENTS WITH FORK HOOK (BALL VALVES, FILTERS AND FITTINGS)
● MIXING TANK (PRE-MIX) OF 35L WITH WASHING CAN SYSTEM, SPRING LOWERING AND CAN STORAGE AREA
● AUTOMATIC HOSE REEL WITH SPRING RETURN FOR OUTER MACHINE WASH, WITH BRUSH
COMPUTER
● COMPUTER “DELTA 80” 7 WATER FUNCTIONS + 9 OIL FUNCTIONS, BIG 8,4” COLOUR DISPLAY, LIGHTED KEYBOARD
● ELECTRICAL SYSTEM WITH ISOBUS CONNECTION
● "WOLF" FLOW METER WITH FLOW RATE FROM 10 TO 200 L / MIN
BOOM
● 5 SECTIONS HYDRAULIC SIDE FOLDING BOOM
● VARIABLE GEOMETRY (G / VAR), FOR THE INDEPENDENT INCLINE OF EACH BOOM HYDRAULIC CLOSING BOOM, WITH 1/2 "STAINLESS STEEL TUBES (D 21mm) WITH 7 POWER SUPPLIES AND PVC TUBE D 19mm
● 7 WATER SUPPLIES (PVC HOSE D 19 mm)
● MANIFOLD TO BLEED THE RESIDUAL PRESSURE ON SECTION SUPPLY HOSES, FOR REDUCING DRIPPING
● STAINLESS STEEL (1/2’’ THREAD, D 21 mm) JETS HOLDER PIPES - 10 mm Ø HOLES WITH 500 mm DISTANCE
● 4-WAYS COMPACT JET AIR INDUCTION NOZZLE "T-AIXR" 110 04 (RED)
● SPRING END BOOM PROTECTION KIT
● REAR CENTRALIZED PANEL FOR WATER SECTION VALVES AND ELECTRO-HYDRAULIC CONTROLS
● HIGH RESISTANCE TERMINAL JET PROTECTION IN POLYETHYLENE
● 2 BLUE LED WORK LIGHTS ON THE BAR THE BLUE LIGHT IN SPOTS TO VERIFY THE CORRECT OPERATION DURING THE NIGHT
● 2 WHITE LED WORKING LIGHTS MOUNTED ON THE LIFT FOR THE LIGHTING OF WORKING AREAS DURING THE NIGHT
● LED FLASHING LIGHT, COMPACT AND REDUCED DIMENSIONS
● JUG FOR NOZZLE CONTROL, WITH GRADUATED SCALE IN ACCORDANCE WITH ISO / DIS 16119
HYDRAULIC SYSTEM
● HYDRAULIC BLOCK WITH 9-FUNCTION HYDRAULIC SOLENOIDS (WITH COMPENSATED HEAD AND ARRANGED LOAD SENSING L / S FOR TRACTORS WITH VARIABLE FLOW PUMP) 4 BOOM FUNCTIONS, 2 "G/VAR"FUNCTIONS, LIFTING, INCLINATION, LOCKING
● HYDRAULIC HOSES WITH QUICK COUPLING TO THE TRACTOR DISTRIBUTOR (1 DOUBLE EFFECT)
● YDRAULIC HOSE FOR TRACTOR WITH LOAD SENSING "L / S" DISTRIBUTOR"
AXLE / WHEELS
● WHEELS 300/95 R46 -12 4 R46- (1720 X 310mm) ALLIANCE PROFILE A-350, 10 HOLES AND BOLTED FLANGE SP 15mm WITH VARIABLE TRACK (16 COMBINATIONS)
● FIX AXLE WITH SQUARE SHAPE EXTRACTABLE HUBS 100 MM, 10 HOLES M22x1,5
● HYDRAULIC BRAKES
●STANDARD TRACK = 1800mm
● ADJUSTABLE TRACK WITH 16 COMBINATIONS FROM 1600 m TO 2600mm
● WIDE 600mm MUDGUARDS, ADJUSTABLE ACCORDING TO THE TRACK
● LED LIGHTS FOR ROAD CIRCULATION (INTEGRATED IN THE MUDGUARDS)
AIRASSITED
● NR 1 FAN WITH 14 BLADES D 720mm BOOMS FROM 24 TO 28m
● HYDRAULIC SYSTEM WITH VARIABLE FLOW PUMP
● 60 LITER OIL TANK WITH FILTER
● EXTERNAL ADIATOR FOR OIL COOLING
● ELECTRIC ADJUSTMENT OF FAN REVOLUTION WITH CONTROL PANEL
● MAXIMUM FAN ROTATION SPEED 3500 G / MIN.

SPRAYMAX (4500-5500-6500) BDL AIR PLUS G-VAR
